EcoFlow Power Hub Specifications
Net Weight	14 kg | 31 lbs
Dimensions (L × W × H)	480 mm × 140 mm × 300 mm | 18.9″ x 5.5″ x 11.8″
Wi-Fi	Supported (<120 Meters)
Bluetooth (v4.0)	Supported (<15 Meters)
AC Main Out	Pure sine wave, 3600 W (surge 7200 W, 100 ms), 120 V, 60 Hz. Linear derating to 1800 W when 40℃ (104°F) < Ambient Temperature < 60℃ (140°F). Derating to 3000 W when battery voltage < 49 V
AC Standard Output	120V, 20A
Maximum AC Output Supported by X-Boost	5200W
DC Output	13.6 V 70 A, max power: 1000 W or 26.4 V 60 A, max power: 1600 W
AC Input Power	3000 W max, 30 A max, supported by EcoFlow X-Stream Technology
AC Input Voltage	100–120 V, 50/60 Hz
Solar Input 1	1600W, 15-60V, 60A
Solar Input 2	1600W, 13-60V, 30A
Solar Input 3	1600W, 13-60V, 30A
Battery Port (x3)	40-60 V 100 A, supports up to three 2kWh or 5kWh LFP batteries (sold separately)
Operating Temperature Range	–25°C to 60°C | -13°F to 140°F
Storage Temperature Range	–25°C to 60°C | -13°F to 140°F
Optional Generator	EcoFlow Smart Generator, 1800 W max charging power, sold separately
5kWh LFP Battery Specifications
Net Weight	90.4 lbs | 41 kg
Dimensions	11.8 x 19.7 x 10.23 in | 30 x 50 x 26 cm
Nominal Capacity	5120Wh (51.2V, 100Ah)
Battery Chemistry	Lithium Iron Phosphate
Cycle Life	~3500 Cycles up to 80% Capacity
IP Rating	IP54
Operating Temperature Range	-4°F-122°F | -20℃-60℃
Storage Temperature	-4°F–140°F | -20°C–60°C
Tests & Certifications	UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
Power Kit Console Specifications
Touch Screen	7 Inch (6 x 3.4 in) (Width x Height)
Power Supply Voltage	12 VDC
Operating Temperature	-4°F-140°F | -20℃-60℃
Dimensions	4.45 x 8.07 x .86 in | 11.3 x 20.5 x 2.2 cm
Net Weight	0.99 lbs | 0.45 kg
Tests & Certifications	UL Standard, FCC, ICES, CE, UKCA, E-Mark, RCM, TELEC, KCC
AC/DC Smart Distribution Panel Specifications
AC Main Input	30A Max. 120V, 3600W
DC Main Input	70A Max
AC Output	6 AC Positions, 20A Max Each
DC Output	12 Fused DC Positions (6 controllable via Power Kit Console & App)
Operating Temperature	-13°F-140°F | -25℃-60℃
Dimensions	8.3 x 13.9 x 3.9 in | 21.1 x 35.3 x 9.9 cm
Net Weight	5.7 lbs | 2.6 kg
Protection Level	IP21
Tests & Certifications	UL Standard, FCC, PSE

Package Content

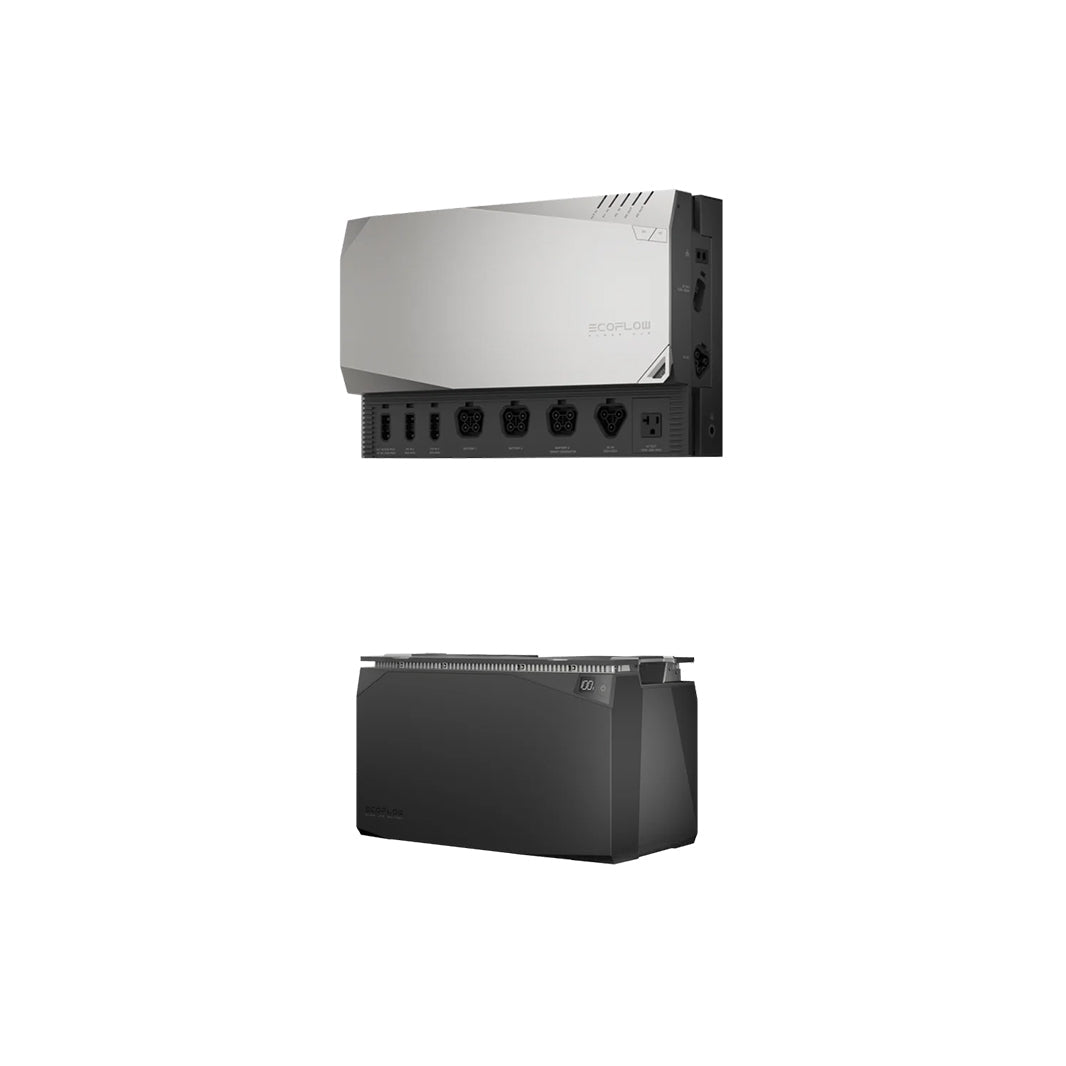

Get Set Kit:

1 x EcoFlow Power Hub

1 x Solar Charge Cable (6m/20ft)

1 x Back Mounting Kit

2 x Mounting Kit (Top/Bottom)

2 x RJ-45 CAN Bus Terminator

13 x M4.8*25 Screws

8 x M5*10 Screws

1 x User Manual

1 x Quick-Start Guide

1 x Warranty Card

1 x 5kWh LFP Battery

1 x Cable Pack

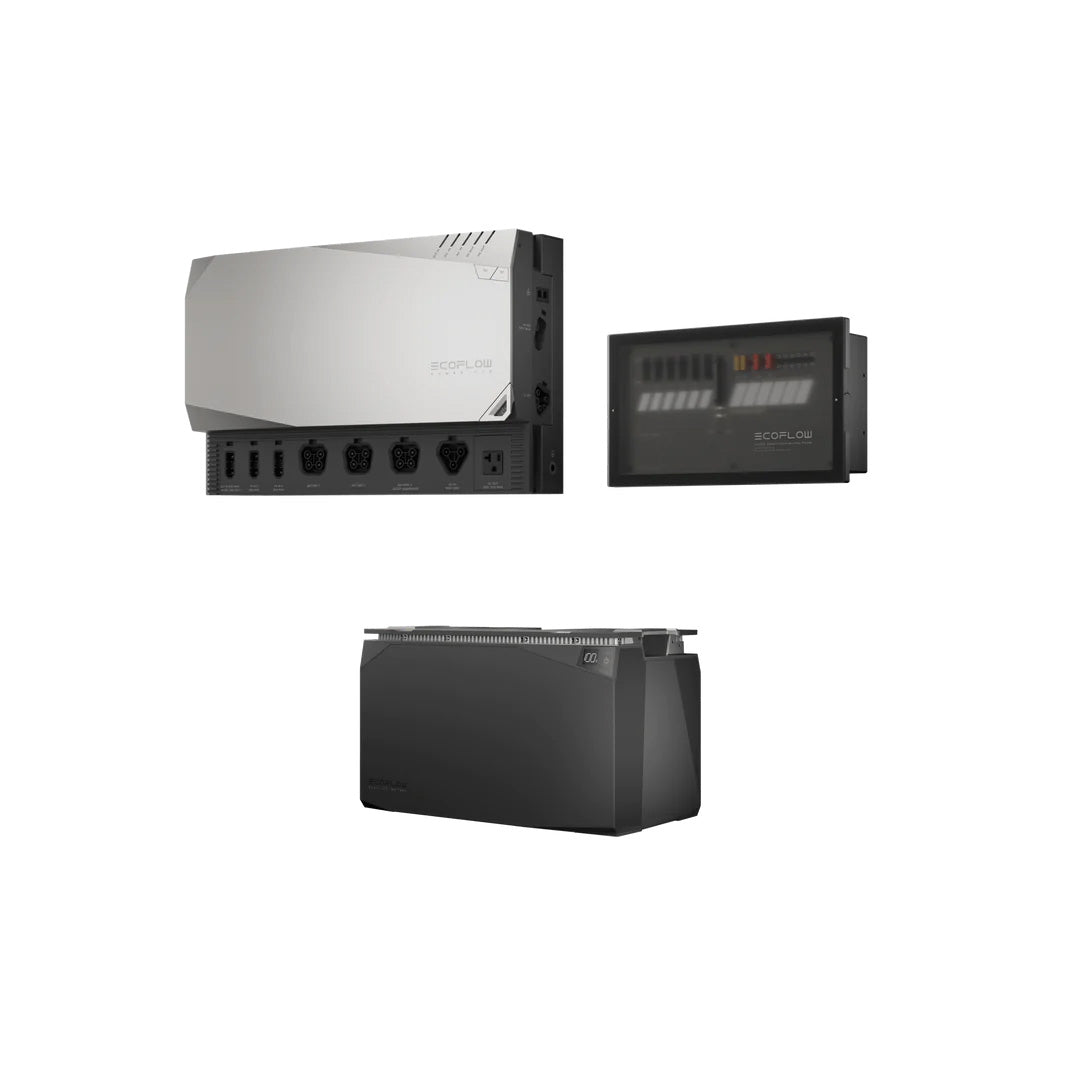

Prepared Kit:

1 x EcoFlow Power Hub

1 x Solar Charge Cable (6m/20ft)

1 x Back Mounting Kit

2 x Mounting Kit (Top/Bottom)

2 x RJ-45 CAN Bus Terminator

13 x M4.8*25 Screws

8 x M5*10 Screws

1 x User Manual

1 x Quick-Start Guide

1 x Warranty Card

1 x 5kWh LFP Battery

1 x Cable Pack

1 x AC/DC Smart Distribution Panel

1 x Battery Mounting Strap

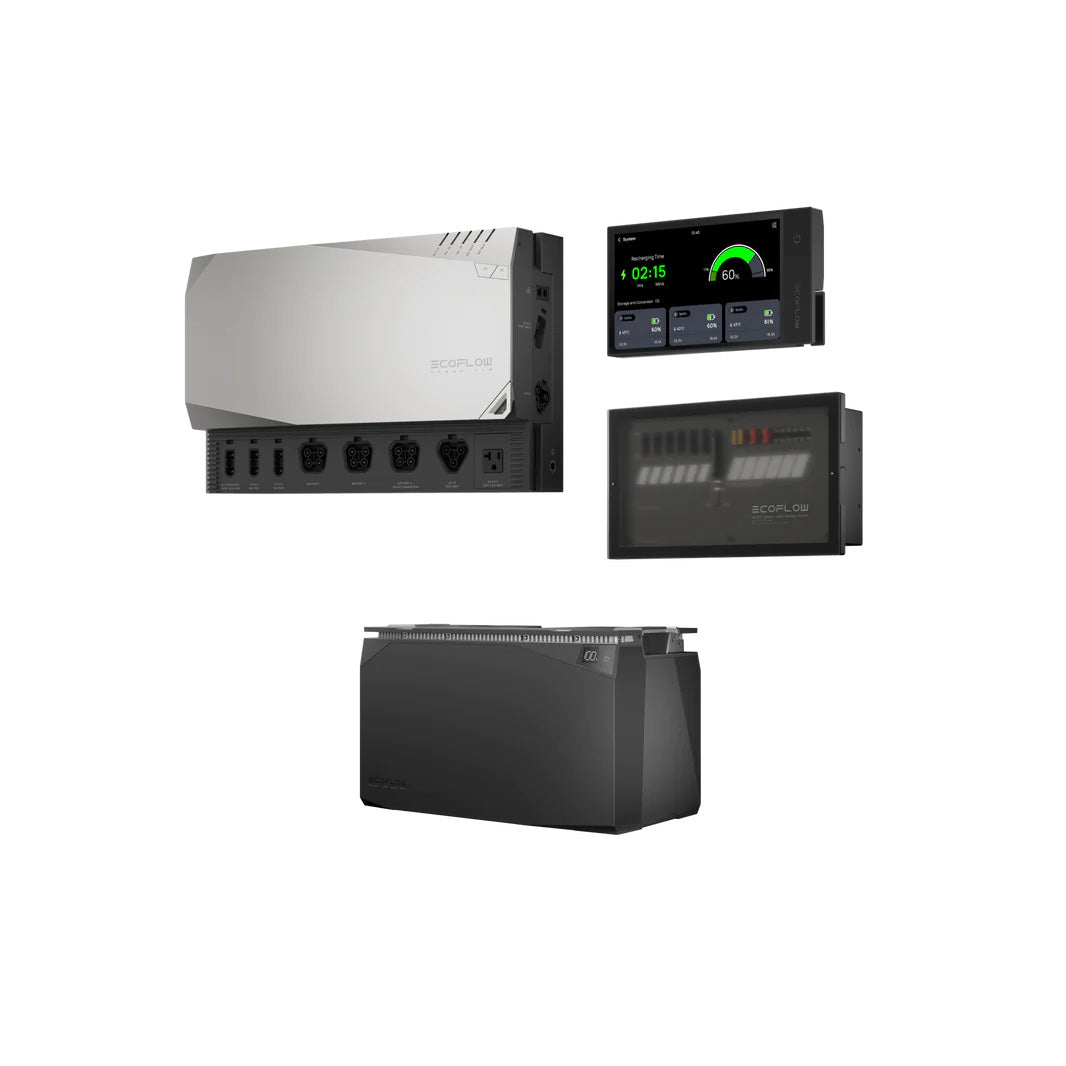

Independence Kit:

1 x EcoFlow Power Hub

1 x Solar Charge Cable (6m/20ft)

1 x Back Mounting Kit

2 x Mounting Kit (Top/Bottom)

2 x RJ-45 CAN Bus Terminator

13 x M4.8*25 Screws

8 x M5*10 Screws

1 x User Manual

1 x Quick-Start Guide

1 x Warranty Card

1 x 5kWh LFP Battery

1 x Cable Pack

1 x AC/DC Smart Distribution Panel

1 x Power Kit Console

1 x Battery Mounting Strap
