$6,499
This item ships for free. Freight shipments include liftgate at no additional charge.
Out of stock

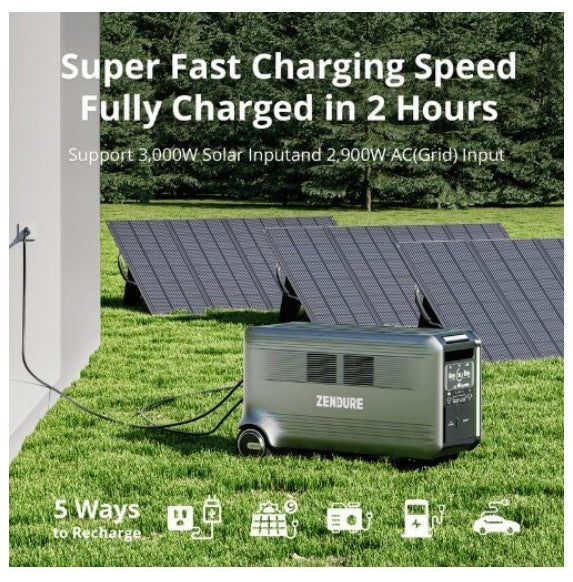

Combining AC and solar power, SuperBase V can charge up to 5,150W on its own, or 6,600W when connected to a Satellite Battery. Whether you’re planning for an emergency or using SuperBase V to manage your household energy consumption, faster is always better. SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers’ solar panels from 12V to 150V and can be easily integrated into your existing solar system. You can charge SuperBase V from a 120V or 240V outlet AC. At 240V, SuperBase V can draw 3,600W at its AC input and recharge in about 2 hours.
Dimensions | 28.7" x 13.6" x 17.4" |
Weight | 130 lbs |
Operating usage temp | Charge -20 to 45 C, Discharge -20 to 45 C |
Connection Type | Wifi/Bluetooth |
Battery Cells | Semi-Solid State |
Warranty | 3 Year Warranty |
AC Input | 1,800 Max, 120V, 3,600W, 240V |
Solar Input | 1x XT90 3000W, 10-150Voc |
Car Input | 1x XT90 12V/24V - 10A |
EV Input | ZenT2 Port |

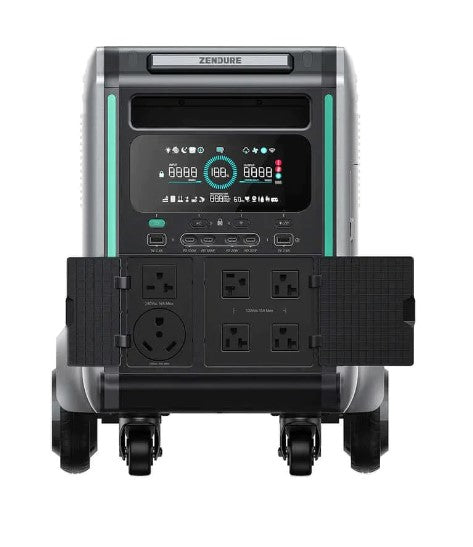

AC Output | 4 x 5-20: 15A 1,800W Max (120V AC) 1 x 6-20: 16A 3,800W Max (240V AC) 1 x TT-30: 30A 3,600W Max (120V AC) |
DC Output | 1 x Car Outlets 12.6V/10A Max 2 x DC5521 12.6V/3A Max 1 x Anderson 12.6V/30A |
USB Output | USB-C (1)/(2) 5V-20V, 100W Max each USB-C (3)/(4) 5V-12V, 20W Max each USB-A (1) (2) 5V/2.4A total |
SuperBase V
Satellite Battery Cable
AC Cable 1.5m
Car Charging Cable 1.5m
Accessory Pouch
Manual
Dimensions | 28.7" x 13.6" x 17.4" |
Weight | 130 lbs |
Operating usage temp | Charge -20 to 45 C, Discharge -20 to 45 C |
Connection Type | Wifi/Bluetooth |
Battery Cells | Semi-Solid State |
Warranty | 3 Year Warranty |
AC Input | 1,800 Max, 120V, 3,600W, 240V |
Solar Input | 1x XT90 3000W, 10-150Voc |
Car Input | 1x XT90 12V/24V - 10A |
EV Input | ZenT2 Port |
AC Output | 4 x 5-20: 15A 1,800W Max (120V AC) 1 x 6-20: 16A 3,800W Max (240V AC) 1 x TT-30: 30A 3,600W Max (120V AC) |
DC Output | 1 x Car Outlets 12.6V/10A Max 2 x DC5521 12.6V/3A Max 1 x Anderson 12.6V/30A |
USB Output | USB-C (1)/(2) 5V-20V, 100W Max each USB-C (3)/(4) 5V-12V, 20W Max each USB-A (1) (2) 5V/2.4A total |
SuperBase V
Satellite Battery Cable
AC Cable 1.5m
Car Charging Cable 1.5m
Accessory Pouch
Manual
