$358
This item ships for free. Freight shipments include liftgate at no additional charge.
Out of stock

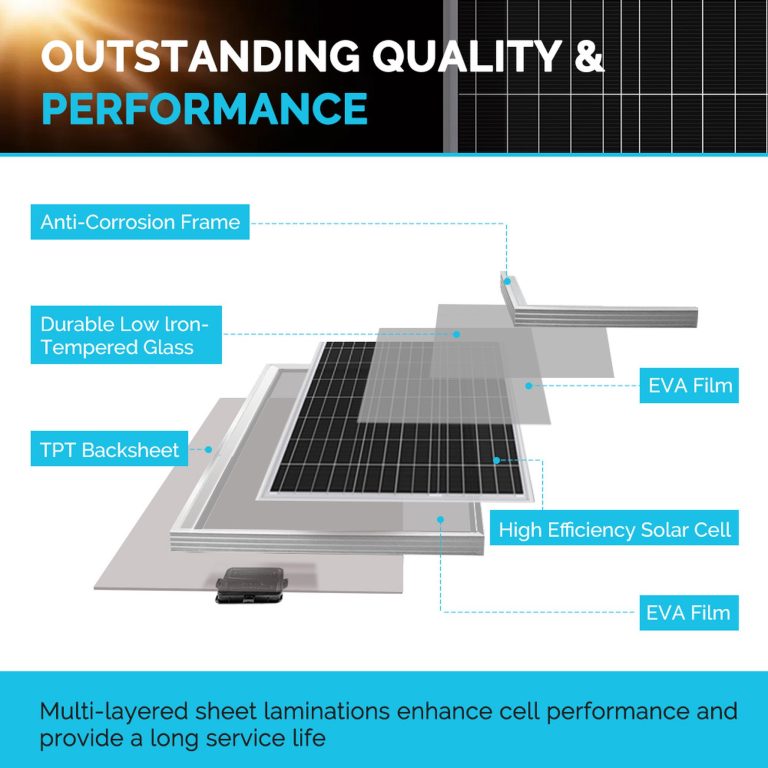

Renogy Premium Solar Kit includes the new 100W Mono Solar Panel made of the highest efficiency solar cells that Renogy has to offer. The included Rover 20A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies.
Our new Bluetooth module is also included which can be paired to the DC Home APP. The DC Home APP allows users to remotely monitor and change their photovoltaic system’s parameters with a few simple swipes on their smartphone or tablet.
This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite.
ANL Fuse Cable Temperature | -40°F to +194°F |
Fuse Set Current Rating | 20A |
Fuse Set Voltage Rating | 72V |
Fuse Set Interrupt Capacity | 180A (48V) |

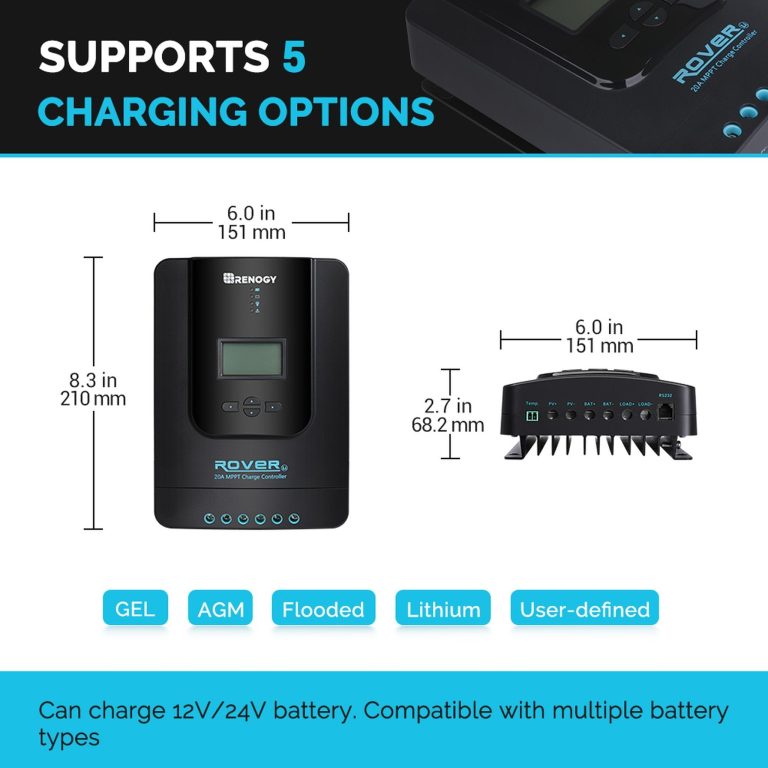

Rover Charge Controller Nominal System Voltage | 12V/24V Auto Recognition |
Rover Charge Controller Rated Battery Current | 20A |
Rover Charge Controller Rated Load Current | 20A |
Rover Charge Controller Max. PV Input Short Current | 25A |
Rover Charge Controller Max. Battery Voltage | 32V |
Bluetooth Module Max Solar Input Voltage | 100 VDC |
Bluetooth Module Mounting Oval | 0.30 x 0.18in |
Bluetooth Module Net Weight | 3.08 lb. |
Bluetooth Module Discharge circuit voltage drop | ≤ 0.15V |
Bluetooth Module Overall Dimension | 8.27 x 5.94 x 2.34 in |

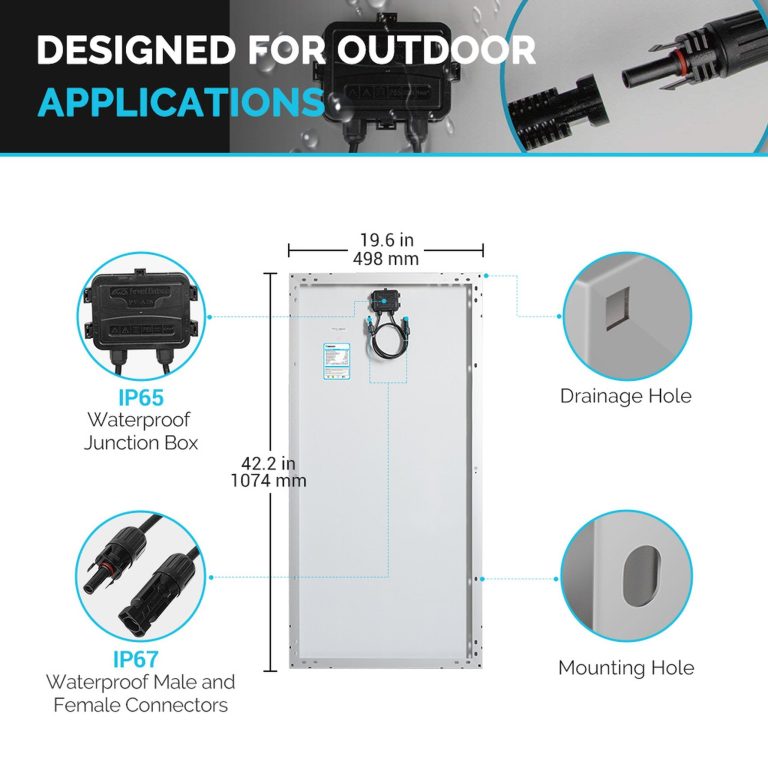

Maximum Power | 100W |
Maximum System Voltage | 600V DC |
Open-Circuit Voltage (Voc) | 21.6V |
Short-Circuit Current (Isc) | 6.24A |
Optimum Operating Voltage (Vmp) | 17.9V |
Optimum Operating Current (Imp) | 5.72A |
Dimensions | 42.2 X 19.6 X 1.38 inches |
Weight | 14.3lbs |

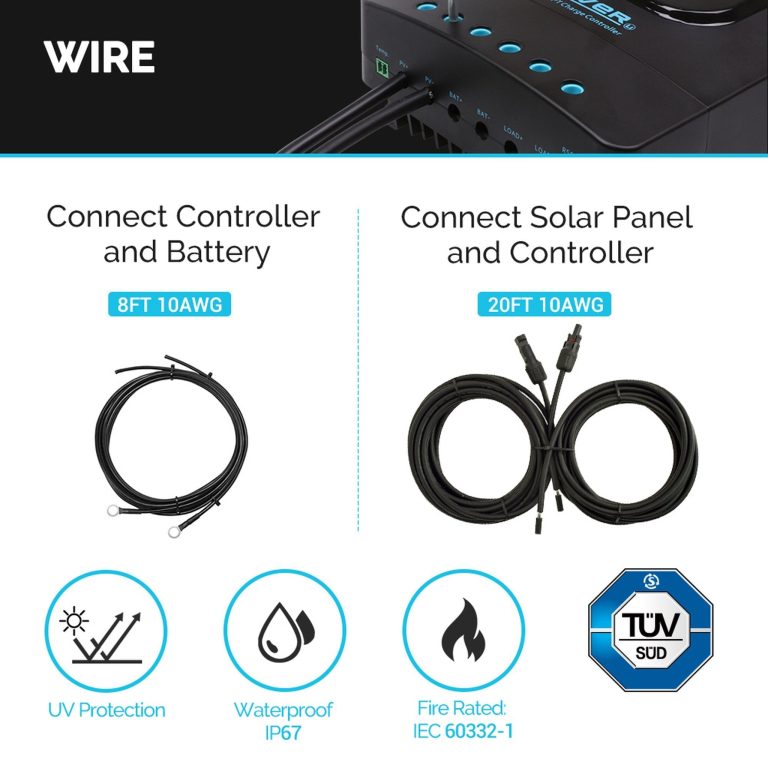

Solar Adaptor Kit (A Pair) Length | 20ft |
Solar Adaptor Kit (A Pair) AWG | 10 |
Solar Adaptor Kit (A Pair) Rating Voltage | 600/1000V |
Solar Adaptor Kit (A Pair) Temperature | -40°F to +185°F |
10A In-Line Fuse Holder w/ Fuse Rated Current | 10A |
10A In-Line Fuse Holder w/ Fuse Rated Voltage | 1000 V DC |
10A In-Line Fuse Holder w/ Fuse Contact Material | Copper, Silver Plated |
10A In-Line Fuse Holder w/ Fuse Replaceable Fuse | Cylindrical PV Fuse (10x38mm) |

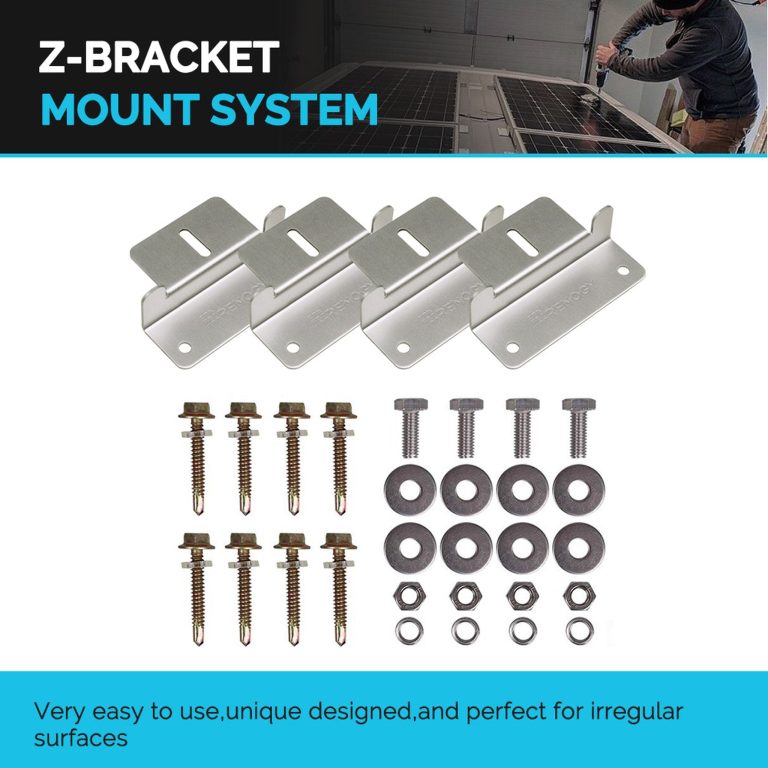

Mounting Z Brackets (Set) | Eight Long Cap Bolts and Four Short Bolts |
Mounting Z Brackets (Set) | Four Spring Washers and Four Washers |
Mounting Z Brackets (Set) | Four Z Shape Solar Panel Brackets |
Mounting Z Brackets (Set) | Four Nuts |
Tray Cables (A Pair) | Rating Voltage |
Tray Cables (A Pair) | Length |
Tray Cables (A Pair) | AWG |
Tray Cables (A Pair) | Temperature |
ANL Fuse Cable Length | 2ft |
ANL Fuse Cable Rating Voltage | AC Uo/U 0.6/1 KV, DC 1.8KV |

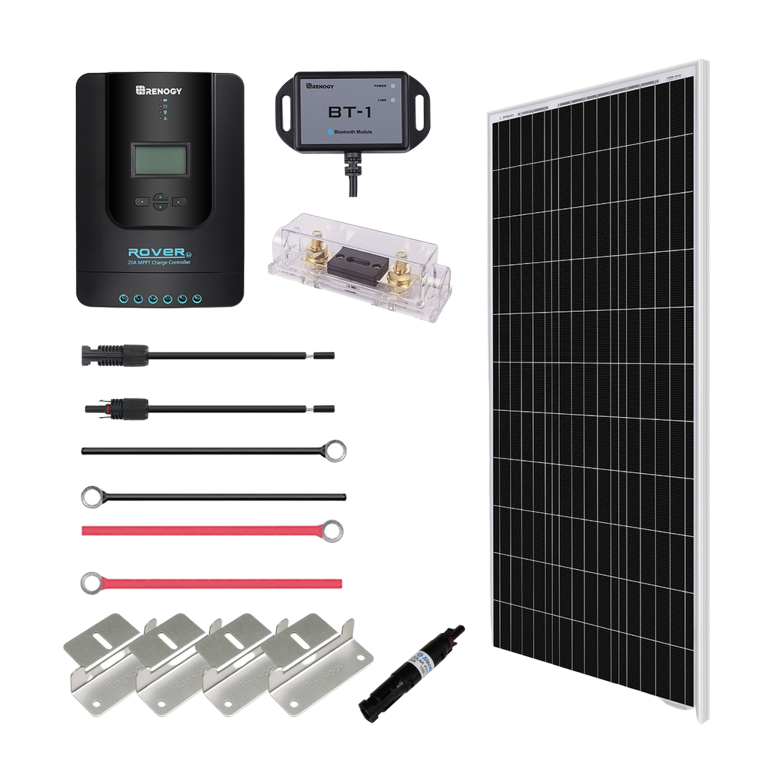

1 x 100W Mono Solar Panel
1 x Rover 20A MPPT Charge Controller
1 x 20ft 10AWG AK
1 x 2ft 10AWG Fuse Cable
1 x 8ft 10AWG Tray Cable
1 x Mounting Z Brackets (Set)
1 x BT-1 Bluetooth Module
1 x 10A In-line Fuse and 20A ANL Fuse
User Manual
ANL Fuse Cable Temperature | -40°F to +194°F |
Fuse Set Current Rating | 20A |
Fuse Set Voltage Rating | 72V |
Fuse Set Interrupt Capacity | 180A (48V) |
Rover Charge Controller Nominal System Voltage | 12V/24V Auto Recognition |
Rover Charge Controller Rated Battery Current | 20A |
Rover Charge Controller Rated Load Current | 20A |
Rover Charge Controller Max. PV Input Short Current | 25A |
Rover Charge Controller Max. Battery Voltage | 32V |
Bluetooth Module Max Solar Input Voltage | 100 VDC |
Bluetooth Module Mounting Oval | 0.30 x 0.18in |
Bluetooth Module Net Weight | 3.08 lb. |
Bluetooth Module Discharge circuit voltage drop | ≤ 0.15V |
Bluetooth Module Overall Dimension | 8.27 x 5.94 x 2.34 in |
Maximum Power | 100W |
Maximum System Voltage | 600V DC |
Open-Circuit Voltage (Voc) | 21.6V |
Short-Circuit Current (Isc) | 6.24A |
Optimum Operating Voltage (Vmp) | 17.9V |
Optimum Operating Current (Imp) | 5.72A |
Dimensions | 42.2 X 19.6 X 1.38 inches |
Weight | 14.3lbs |
Solar Adaptor Kit (A Pair) Length | 20ft |
Solar Adaptor Kit (A Pair) AWG | 10 |
Solar Adaptor Kit (A Pair) Rating Voltage | 600/1000V |
Solar Adaptor Kit (A Pair) Temperature | -40°F to +185°F |
10A In-Line Fuse Holder w/ Fuse Rated Current | 10A |
10A In-Line Fuse Holder w/ Fuse Rated Voltage | 1000 V DC |
10A In-Line Fuse Holder w/ Fuse Contact Material | Copper, Silver Plated |
10A In-Line Fuse Holder w/ Fuse Replaceable Fuse | Cylindrical PV Fuse (10x38mm) |
Mounting Z Brackets (Set) | Eight Long Cap Bolts and Four Short Bolts |
Mounting Z Brackets (Set) | Four Spring Washers and Four Washers |
Mounting Z Brackets (Set) | Four Z Shape Solar Panel Brackets |
Mounting Z Brackets (Set) | Four Nuts |
Tray Cables (A Pair) | Rating Voltage |
Tray Cables (A Pair) | Length |
Tray Cables (A Pair) | AWG |
Tray Cables (A Pair) | Temperature |
ANL Fuse Cable Length | 2ft |
ANL Fuse Cable Rating Voltage | AC Uo/U 0.6/1 KV, DC 1.8KV |
1 x 100W Mono Solar Panel
1 x Rover 20A MPPT Charge Controller
1 x 20ft 10AWG AK
1 x 2ft 10AWG Fuse Cable
1 x 8ft 10AWG Tray Cable
1 x Mounting Z Brackets (Set)
1 x BT-1 Bluetooth Module
1 x 10A In-line Fuse and 20A ANL Fuse
User Manual
