$2,299
This item ships for free. Freight shipments include liftgate at no additional charge.
Out of stock

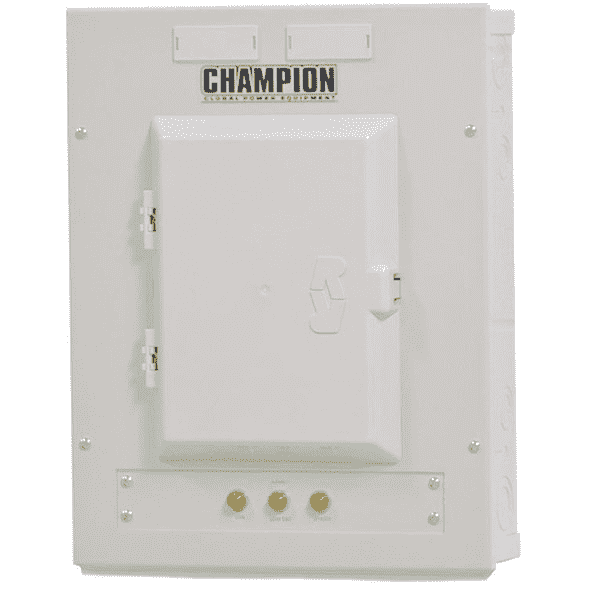

The Champion 100174 with 50-Amp NEMA 1 Indoor 8-Space Load-Center Automatic Transfer Switch supplies power to your home’s most essential circuits including refrigerators, freezers, sump pumps, lights, furnace, computers, security systems, and televisions. Even a window air conditioner or two. No shutting down to refuel in the dark. No extension cords to run. It runs automatically and supplies power within seconds after an outage occurs.
| Frequency | 60hz |
| NG Consumption @ Full Load | 135.76 cu.ft/hr |
| NG Consumption @ Half Load | 108.37 cu.ft/hr |
| LP Consumption @ Full Load | 58.67 cu.ft/hr |
| LP Consumption @ Half Load | 40.31 cu.ft/hr |
| Transfer Switch Model | 100947 |
| Switch Amps | 50a |
| Switch Circuits | 8 Space |
| ATS Poles | 2 |
| Model | 100174 |
| Manufacturer | Champion |
| Rated Watts | 8.5kw LP/7.5kw NG |
| Rated Amps | 35.4 LP/31.25 NG |
| Voltage | 120/240 Single Phase |
| Enclosure | Steel |
| UL Listed | Yes |
| Decibel Rating @ 7m | 59.5db |
| Starting System | Automatic |
| Low Oil Alert | Yes |
| Hour Meter | Yes |
| Battery Required? | Yes |
| Battery Type | 2x 12v U1 Group 350CCA |
| Mounting Pad | Composite Base |
| Weight | 365 lbs. |
| Dimensions (LxWxH) | 49 x 28 x 28 |
| Engine Brand | Champion |
| Engine Size | 436cc |
| RPM | 3600 |
| Cast Iron Sleeve | Yes |
| Cooling System | Air Cooled |
| Alternator | Brushed |

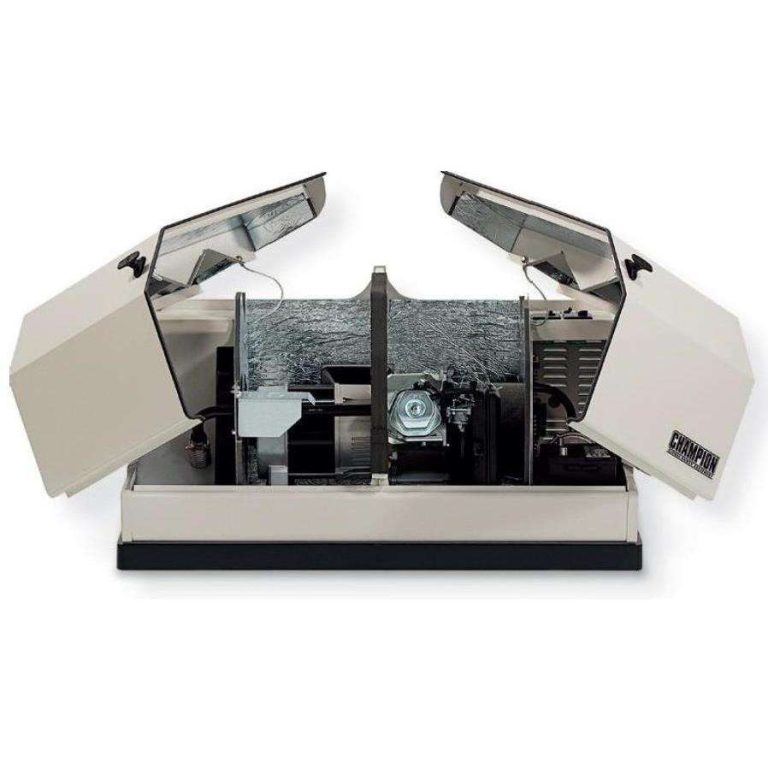

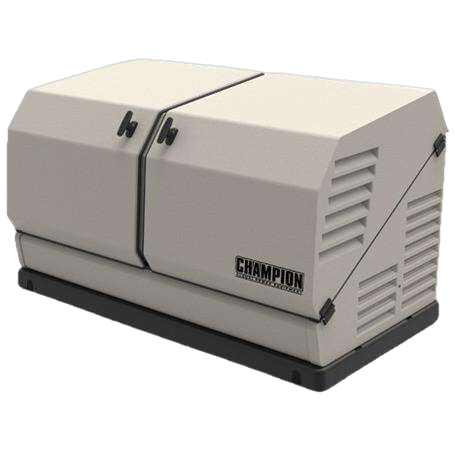

8.5kw Standby Generator
Automatic 50 amp, 10 circuit transfer switch
All weather composite mounting pad
The Champion 100174 with 50-Amp NEMA 1 Indoor 8-Space Load-Center Automatic Transfer Switch supplies power to your home’s most essential circuits including refrigerators, freezers, sump pumps, lights, furnace, computers, security systems, and televisions. Even a window air conditioner or two. No shutting down to refuel in the dark. No extension cords to run. It runs automatically and supplies power within seconds after an outage occurs.
| Frequency | 60hz |
| NG Consumption @ Full Load | 135.76 cu.ft/hr |
| NG Consumption @ Half Load | 108.37 cu.ft/hr |
| LP Consumption @ Full Load | 58.67 cu.ft/hr |
| LP Consumption @ Half Load | 40.31 cu.ft/hr |
| Transfer Switch Model | 100947 |
| Switch Amps | 50a |
| Switch Circuits | 8 Space |
| ATS Poles | 2 |
| Model | 100174 |
| Manufacturer | Champion |
| Rated Watts | 8.5kw LP/7.5kw NG |
| Rated Amps | 35.4 LP/31.25 NG |
| Voltage | 120/240 Single Phase |
| Enclosure | Steel |
| UL Listed | Yes |
| Decibel Rating @ 7m | 59.5db |
| Starting System | Automatic |
| Low Oil Alert | Yes |
| Hour Meter | Yes |
| Battery Required? | Yes |
| Battery Type | 2x 12v U1 Group 350CCA |
| Mounting Pad | Composite Base |
| Weight | 365 lbs. |
| Dimensions (LxWxH) | 49 x 28 x 28 |
| Engine Brand | Champion |
| Engine Size | 436cc |
| RPM | 3600 |
| Cast Iron Sleeve | Yes |
| Cooling System | Air Cooled |
| Alternator | Brushed |
8.5kw Standby Generator
Automatic 50 amp, 10 circuit transfer switch
All weather composite mounting pad
